Compatible scenarios

synergyprovides you with monitoring scenarios optimised for LOVATO Electric equipment.

The scenarios are composed of synergy‘s standard elements:

Monitoring page

to check instantaneous data

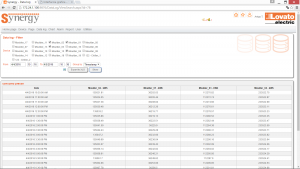

Data log

for data storage

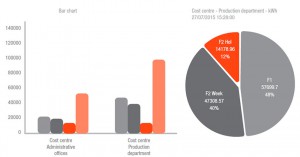

Charts

to represent data collected from the data logs

Reports

to process data by time-of-data range or consumer loads

Scenarios for the DMG-DME measuring instruments

Compatible devicesDMG110, DMG210, DMG300, DMG600, DMG610, DMG700, DMG800, DMG900, DMG900T, DMED310T2, DMED330
PAGE >3PH INSTRUMENT

  • real time sampling time (>= 5S)
Equivalent line voltage
Voltage L1, L2, L3
THD voltage L1, L2, L3*
Equivalent line current
Current L1, L2, L3
THD current L1, L2, L3*
Equivalent active power
Active power L1, L2, L3
Equivalent reactive power
Reactive power L1, L2, L3
Equivalent power factor
Power factor L1, L2, L3
Equivalent apparent power
Apparent power L1, L2, L3
Total imported active energy
Total exported active energy
Total imported reactive energy
Total exported reactive energy
Max. demand of active power
Partial hour counter

* for DMG series only

DATA LOG 1 > 3PH SHORT ENERGY

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Total imported active energy
Total exported active energy
Total imported reactive energy
Partial hour counter
DATA LOG 2 > 3PH LONG ENERGY

  • sampling time 1 day
  • Data on line for at least 3 years
  • Data exported weekly
Total imported active energy
Total exported active energy
Total imported reactive energy
Partial hour counter
Imported active energy delta
DATA LOG 3 >3PH VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Equivalent line voltage
Equivalent current
Equivalent active power
Equivalent reactive power
Max. demand of active power
Equivalent power factor
Power factor L1, L2, L3
THD current L1, L2, L3*

* for DMG series only

Graph 1 (datalogger 1) > SHORT ENERGY CONSUMPTION
Imported (consumption) active energy delta
Graph 2 (datalogger 2) > LONG ENERGY CONSUMPTION
Imported (consumption) active energy delta
Graph 3 (datalogger 3) >EQ POWER
Equivalent active power
Report 1 (datalogger 2) > ACTIVE ENERGY CONSUMPTION
Imported (consumption) active energy delta
Report 1 (datalogger 3) > MAX. EQ. POWER
Max. equivalent active power
Compatible devicesDMED310T2, DMED330
PAGE > 3x1PH INSTRUMENT

  • ON LINE sampling time (>= 5S)
Voltage L1, L2, L3
Current L1, L2, L3
Active power L1, L2, L3
Max. demand of active power L1, L2, L3
Power factor L1, L2, L3
Imported active energy L1, L2, L3
Exported active energy L1, L2, L3
Partial hour counter L1, L2, L3
DATA LOG 1 > 3x1PH SHORT ENERGY

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Imported active energy L1, L2, L3
Exported active energy L1, L2, L3
Partial hour counter L1, L2, L3
Energy delta L1, L2, L3
DATA LOG 2 > 3x1PH LONG ENERGY

  • sampling time 1 day
  • Data on line for at least 3 years
  • Data exported weekly
Imported active energy L1, L2, L3
Exported active energy L1, L2, L3
Partial hour counter L1, L2, L3
Energy delta L1, L2, L3
DATA LOG 3 > 3x1PH VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Current L1, L2, L3
Active power L1, L2, L3
Power factor L1, L2, L3
Graph 1 (datalogger 1) > 3x1PH SHORT ENERGY CONSUMPTIONEnergy delta L1, L2, L3
Graph 2 (datalogger 2) > 3x1PH LONG ENERGY CONSUMPTIONEnergy delta L1, L2, L3
Graph 3 (datalogger 3) > 3x1PH EQ POWERActive power L1, L2, L3
Report 1 (datalogger 2) > ACTIVE ENERGYImported active energy L1, L2, L3
Report 1 (datalogger 3) > MAX. POWERMax. active power L1, L2, L3
Compatible devicesDMED121
PAGE > 1PH INSTRUMENT

  • ON LINE sampling time (>= 5S)
Tensione L1, L2, L3
Voltage L1
Current L1
Active power L1
Max. demand of active power
Power factor L1
EImported active energy L1
Partial hour counter L1
DATA LOG 1 > 1PH SHORT ENERGY

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Imported active energy L1
Partial hour counter L1
Energy delta L1
DATA LOG 2 > 1PH LONG ENERGY

  • sampling time 1 day
  • Data on line for at least 3 years
  • Data exported weekly
Imported active energy L1
Partial hour counter L1
Energy delta L1
DATA LOG 3 > 1PH VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Current L1
Active power L1
Graph 1 (datalogger 1) > 1x1PH SHORT ENERGY CONSUMPTIONEnergy delta L1
Graph 2 (datalogger 2) > 1x1PH LONG ENERGY CONSUMPTIONEnergy delta L1
Graph 3 (datalogger 3) > 1x1PH EQ POWERActive power L1
Report 1 (datalogger 2) > ACTIVE ENERGYImported active energy L1
Report 2 (datalogger 3) > MAX. POWERMax. active power L1

Scenarios for DMECD DATA CONCENTRATOR

Compatible devicesDMECD
PAGE > ENERGY CONCENTRATOR

  • ON LINE sampling time (>= 5S)
Hour counter energy 1, 2, 3, 4, 5, 6, 7, 8
Hour counter average power 1, 2, 3, 4, 5, 6, 7, 8
DATA LOG 1 > SHORT ENERGY CONCENTRATOR CONSUMPTION

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Hour counter energy 1, 2, 3, 4, 5, 6, 7, 8
Hour counter energy delta 1, 2, 3, 4, 5, 6, 7, 8
DATA LOG 2 > LONG ENERGY CONCENTRATOR CONSUMPTION

  • sampling time 1 day
  • Data on line for at least 3 years
  • Data exported weekly
Hour counter energy 1, 2, 3, 4, 5, 6, 7, 8
Hour counter energy delta 1, 2, 3, 4, 5, 6, 7, 8
DATA LOG 3 > ENERGY CONCENTRATOR VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Hour counter active power 1, 2, 3, 4, 5, 6, 7, 8
Graph 1 (datalogger 1) > SHORT ENERGY CONCENTRATOR CONSUMPTIONHour counter delta 1, 2, 3, 4, 5, 6, 7, 8
Graph 2 (datalogger 2) > LONG ENERGY CONCENTRATOR CONSUMPTIONHour counter delta 1, 2, 3, 4, 5, 6, 7, 8
Graph 3 (datalogger 3) > LONG ENERGY CONCENTRATOR POWERHour counter active power 1, 2, 3, 4, 5, 6, 7, 8
Report 1 (datalogger 2) > ACTIVE ENERGYHour counter energy 1, 2, 3, 4, 5, 6, 7, 8
Report 2 (datalogger 3) > MAX. POWERHour counter power 1, 2, 3, 4, 5, 6, 7, 8
Compatible devicesDMECD
PAGE > GENERAL CONCENTRATOR

  • ON LINE sampling time (>= 5S)
Hour counter 1, 2, 3, 4, 5, 6, 7, 8
Hour counter instantaneous consumption 1, 2, 3, 4, 5, 6, 7, 8
DATA LOG 1 > SHORT GENERAL CONCENTRATOR COUNT

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Hour counter 1, 2, 3, 4, 5, 6, 7, 8
DATA LOG 3 > LONG GENERAL CONCENTRATOR COUNT

  • sampling time 1 day
  • Data on line for at least 3 years
  • Data exported weekly
Hour counter 1, 2, 3, 4, 5, 6, 7, 8
DATA LOG 2 > LONG GENERAL CONCENTRATOR VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Hour counter instantaneous consumption 1, 2, 3, 4, 5, 6, 7, 8
Graph 1 (datalogger 1) > SHORT GENERAL CONCENTRATOR CONSUMPTIONHour counter delta 1, 2, 3, 4, 5, 6, 7, 8
Graph 2 (datalogger 2) > LONG GENERAL CONCENTRATOR CONSUMPTIONHour counter delta 1, 2, 3, 4, 5, 6, 7, 8
Graph 3 (datalogger 3) > LONG GENERAL CONCENTRATOR INSTANTANEOUSHour counter integration 1, 2, 3, 4, 5, 6, 7, 8
Report 2 (datalogger 2) > LONG GENERAL CONCENTRATOR CONSUMPTIONHour counter delta 1, 2, 3, 4, 5, 6, 7, 8
Report 1 (datalogger 3) > LONG GENERAL CONCENTRATOR INSTANTANEOUSHour counter integration 1, 2, 3, 4, 5, 6, 7, 8

Scenarios for controllers of RGK generating sets

Compatible devicesRGK610, RGK700, RGK800
PAGE > CONTROLLER FOR SETS IN CASE OF MAINS EMERGENCY

  • ON LINE sampling time (>= 5S)
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Mains equivalent line voltage
Mains active power
Generator active power
Global alarm
DATA LOG 1 > STATUS OF CONTROLLER FOR SETS IN CASE OF MAINS EMERGENCY

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
DATA LOG 2 > VALUE OF CONTROLLER FOR SETS IN CASE OF MAINS EMERGENCY

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Mains equivalent line voltage
Mains active power
Generator active power
Graph 1 (datalog 2) > POWER OF CONTROLLER FOR SETS IN CASE OF MAINS EMERGENCYGenerator and mains equivalent active power
Report 1 (datalog 2) >CONTROLLER FOR SETS IN CASE OF MAINS EMERGENCYMax. power values
STAND ALONE CONTROLLER

Compatible devicesRGK700SA, RGK800SA
PAGE > STAND-ALONE SET CONTROLLER

  • ON LINE sampling time (>= 5S)
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Generator active power
Global alarm
DATA LOG 1 > STATUS OF STAND-ALONE SET CONTROLLER

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
DATA LOG 2 > VALUE OF STAND-ALONE SET CONTROLLER

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Generator active power
Graph 1 (datalog 2) > POWER OF STAND-ALONE SET CONTROLLERGenerator and mains equivalent active power
Report 1 (datalog 2) > STAND-ALONE SET CONTROLLERMax. power values
MAINS PARALLEL CONTROLLER

Compatible devicesRGK900
PAGE > CONTROLLER FOR MAINS PARALLEL SETS

  • ON LINE sampling time (>= 5S)
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Mains equivalent line voltage
Mains active power
Generator active power
Global alarm
DATA LOG 1 > STATUS OF MAINS PARALLEL SET CONTROLLER

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
DATA LOG 2 > VALUE OF MAINS PARALLEL SET CONTROLLER

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Mains equivalent line voltage
Mains active power
Generator active power
Graph 1 (datalog 2) > POWER OF MAINS PARALLEL SET CONTROLLERGenerator and mains equivalent active power
Report 1 (datalog 2) > CONTROLLER FOR MAINS PARALLEL SETSMax. power values
CONTROLLER FOR PARALLEL SETS

Compatible devicesRGK900SA
PAGE > CONTROLLER FOR RECIPROCALLY PARALLEL SETS

  • ON LINE sampling time (>= 5S)
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Generator active power
Global alarm
DATA LOG 1 > STATUS OF RECIPROCALLY PARALLEL SETS CONTROLLER

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Total hour counter
Maintenance hour counter 1
Maintenance hour counter 2
Maintenance hour counter 3
Rental hour counter
Percentage of successful starts
Engine temperature
Engine pressure
Fuel level
DATA LOG 2 > VALUE OF RECIPROCALLY PARALLEL SETS CONTROLLER

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Current L1, L2, L3
Voltage generator L1-L2, L2-L3, L3-L1
Generator active power
Graph 1 (datalog 2) > POWER OF RECIPROCALLY PARALLEL SETS CONTROLLERGenerator and mains equivalent active power
Report 1 (datalog 2) > POWER OF RECIPROCALLY PARALLEL SETS CONTROLLERMax. power values

Scenarios for DCR power factor controllers: monitoring – controller for power factor correction panel

SCENARIO FOR POWER FACTOR CORRECTION

Compatible devicesDCRG8, DCRL8, DCRL5, DCRL3
PAGE > POWER FACTOR CONTROLLER

  • ON LINE sampling time (>= 5S)
Step status from 1 to 8
Number of engagements per step from 1 to 8
Equivalent line voltage
System cosφ
Total reactive power
Reactive power L1, L2, L3
Panel temperature
Average weekly power factor value
DATA LOG 1 > POWER FACTOR CONTROLLER STATUS

  • sampling time 15 minutes
  • Data on line for at least 1 year
  • Data exported weekly
Step status from 1 to 8
Number of engagements per step from 1 to 8
DATA LOG 2 > POWER FACTOR CONTROLLER VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Equivalent line voltage
System cosφ
Total reactive power
Reactive power L1, L2, L3
Panel temperature
Average weekly power factor value
Graph 1 (datalog 2) > POWER FACTOR CONTROLLER POWERTotal reactive power
cosφ

Scenarios for ATL automatic transfer switch controllers

Compatible devicesATL600, ATL610, ATL800, ATL900
PAGE > AUTOMATIC TRANSFER SWITCH CONTROLLER

  • ON LINE sampling time (>= 5S)
Line voltage L1-L2, L2-L3, L3-L1 line 1
Line voltage L1-L2, L2-L3, L3-L1 line 2
DATA LOG 1 > AUTOMATIC TRANSFER SWITCH CONTROLLER VALUE

  • sampling time 5 minutes
  • Data on line for at least 2 months
  • Data exported weekly
Line voltage L1-L2, L2-L3, L3-L1 line 1
Line voltage L1-L2, L2-L3, L3-L1 line 2
